Heat Transfer 100mm Bimetal Thermometer Temperature Gauge Stainless Steel

Name: Heat Transfer 100mm Bimetal Thermometer Temperature Gauge Stainless Steel
Brand: WESEN or Customized
Price: 1 USD

China Heat Transfer 100mm Bimetal Thermometer Temperature Gauge Stainless Steel wholesale

Brand Name : WESEN or Customized

Model Number : M14.03.100.N

Certification : CE, ISO

Place of Origin : China

MOQ : 100 Pieces

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20000 Pieces per Month

Delivery Time : 3~4 Weeks

Packaging Details : Carton

Size : 100mm

Mount : Every Angle

Temperature Range : 120 °C or customized

Case Material : SUS 304

Connection : PT, NPT, G, BSP

Stem Dia. : 6mm, 8mm, 10mm

Stem Length : 30cm (customized)

Lens : PC Glass

Color : Silver

Accuracy : 1.0

Contact Now

100mm 0-120 °C Every Angle Stainless Steel Bimetal Thermometer For Heat Transfer Stations

Description

The model M14 bimetal thermometers are the entry-level model among process thermometers. The target markets of this thermometer are air-conditioning and machine building. Especially noteworthy is the large number of stem lengths and nominal sizes. This enables the individual adaptation to the target applications.

Applications

A wide range of applications in machine building, vessel, piping and apparatus construction

Heating technology

Special features

Scale ranges from -30 ... +500 °C

Large choice of nominal sizes from 25 ... 160 mm

Case and stem from stainless steel

5 different connection designs

**Specifications**
Nominal size	100mm
Accuracy	1.0
Temperature range	0-120 °C (customized)
Working range	Full scale value
Case	Steel
Measuring element	Bimetal coil
Connection location	Bottom mount
Stem	Aluminium
Thermowell	Copper alloy, removable, friction fit
Dial	Aluminium
Window	Plastic, glass
Options	Other scale ranges Slip-on bezel, nickel-plated Removable brass thermowell with retainer screw

Heat Transfer 100mm Bimetal Thermometer Temperature Gauge Stainless Steel

Ordering information

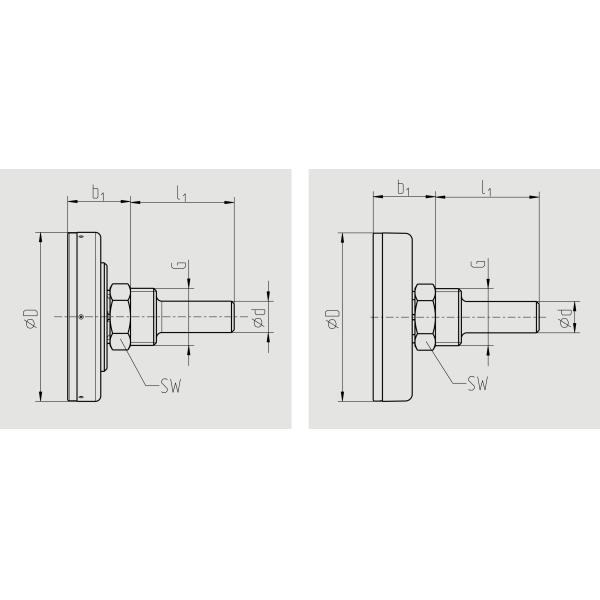

Model / Dial size / Scale Range / Process connection / Stem dia. & length / Options
